Thursday, December 24, 2015

Myrtenaster Prototype Build Write Up Part 4: Finishing

Prettify time!

Main paints used were silver and black colors. These paints already had a sealer mixed in so I wouldn't have to repaint over the colors to create a shiny look.

But, I couldn't start painting until I finished the handle so I made one out of toilet paper cardboard tubes.

The toilet paper tube was only long enough to hold the bike inflator. So I extended it by attaching another toilet paper tube to it.

The batteries ended up being too long for the tube,

so I made a cap out of foam board and stiff felt. It fits.

Commence paint!

Painted strips of white craft foam silver then glued to the tube in spiral. Also wrapped the stiff felt in white craft foam then painted it silver.

Handle done. Now to paint the prop. Gave it a whole coat of silver.

Then the black fancy patterns were hand painted on. This was done by sketching the patterns from Tatsutetsu prints with pencil then painting over the sketches with black paint.

This gets tiring after the 3rd time.

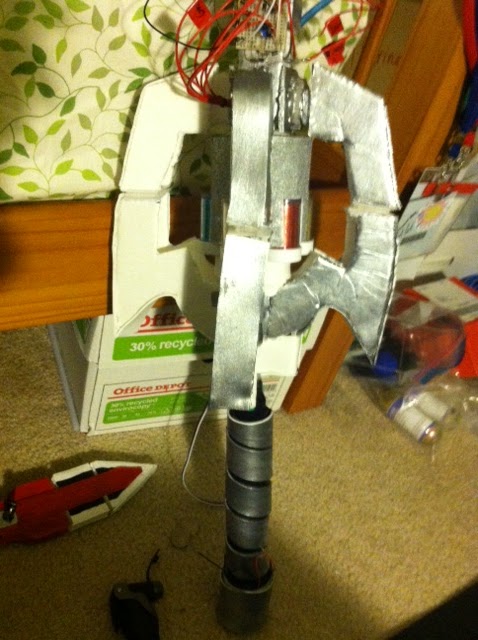

 Once the fin patterns were done, the cylinder markings were done and the inside components were painted silver.

In progress painting.

Final prop lies below.

Lights! Pictures were taken with flash.

Size comparison with Crescent Rose

Video of complete prop with all of it's features.

Wednesday, December 23, 2015

Myrtenaster Prototype Build Write Up Part 3: Electronics

Now to try to add the cylinder effect.

Figured out how to do the spinning cylinder effect. Use a motor! Specifically, this motor below.

A Vex 2-wire Motor 393

Unfortunately, to add it to the prop, it means disassembling the prop.

Oh well...
The Vex motor also comes with smaller gears to change the gearing of the motor to be more speed oriented. One of smaller gear packets cones with a square shaft extender part. This was hot glued into the center of the cylinder in order to allow the prop to be taken apart and still spin.

Then the motor was mounted by cutting a space into the cardboard section of the handle to fit it and hot glueing it.

Now lights time!

Below is the circuit I will be putting on Myrtenaster.

I bought these RGB LEDs

Soldered all 20 in parallel with each other.

Ugh never again...

Close up on the array. Added hot glue to solidify the array.

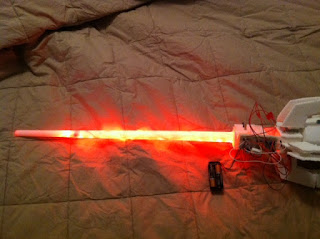

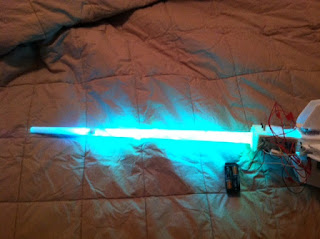

Stuffed it into the blade and tested it. Got red, blue, green, and cyan. All of the red combinations, besides red itself, didn't work.

Upon closer inspection of the circuit, red doesn't turn on because it requires lower voltage to turn on, taking all of the juice and not letting the blue or green lines to light up. Options now are to buy a pot (potentiometer) or apply a regulator to each line after the switch.

As I waited for the new parts to ship, I got to attaching the blade to the prop. Like so.

I also soldered the wires to the 1-pole 12 position switch to get it ready to mount to the prop.

Mounted it to the prop with a fitted pvc fitting and hotglue.

 Also finished up putting the rest of the fins in.

I got a pot (potentiometer) in my parts package. Something like this guy below.

Shown below is the new schematic with the pot.

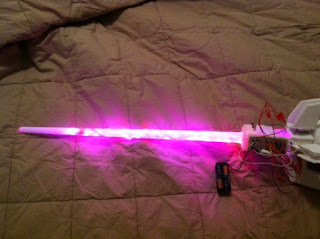

The above schematic was put on a breadboard and mounted on the prop. The pot was then adjusted with a screwdriver while attached to the red line. Indeed it was a voltage problem, at the right adjustment, purple and all other colors came up as expected.

The connections were then attached to the 12 position switch and tested. What ended up happening was that the powered lines of the switch ended up traveling through the other nodes of the circuit, resulting in the blue position coming up as cyan if a cyan connection was made. Voltage needed to be stopped at certain nodes in order for the all of the colors to show up properly.

To solve this problem, rectifier diodes were used. Something shown below.

Basically, rectifier diodes only allow voltage to go through them in one direction. This is perfect for this circuit as it allows voltage to reach the right color lines of the RGB LEDs but does not spread to the other lines.

Circuit schematic with the diodes.

Final circuit breadboard on the prop.

Here are all of the colors activated through the 12 position switch. Photos where taken with a fan ceiling light as background lighting.



Yellow. It's much more yellow in real life.

Green. It's actually greener than this in real life.



Things left to do:
-solder electronics
-mount electronics
-put together pneumatics
-mount pneumatics
-create handle(handle not complete)
-attach handle
